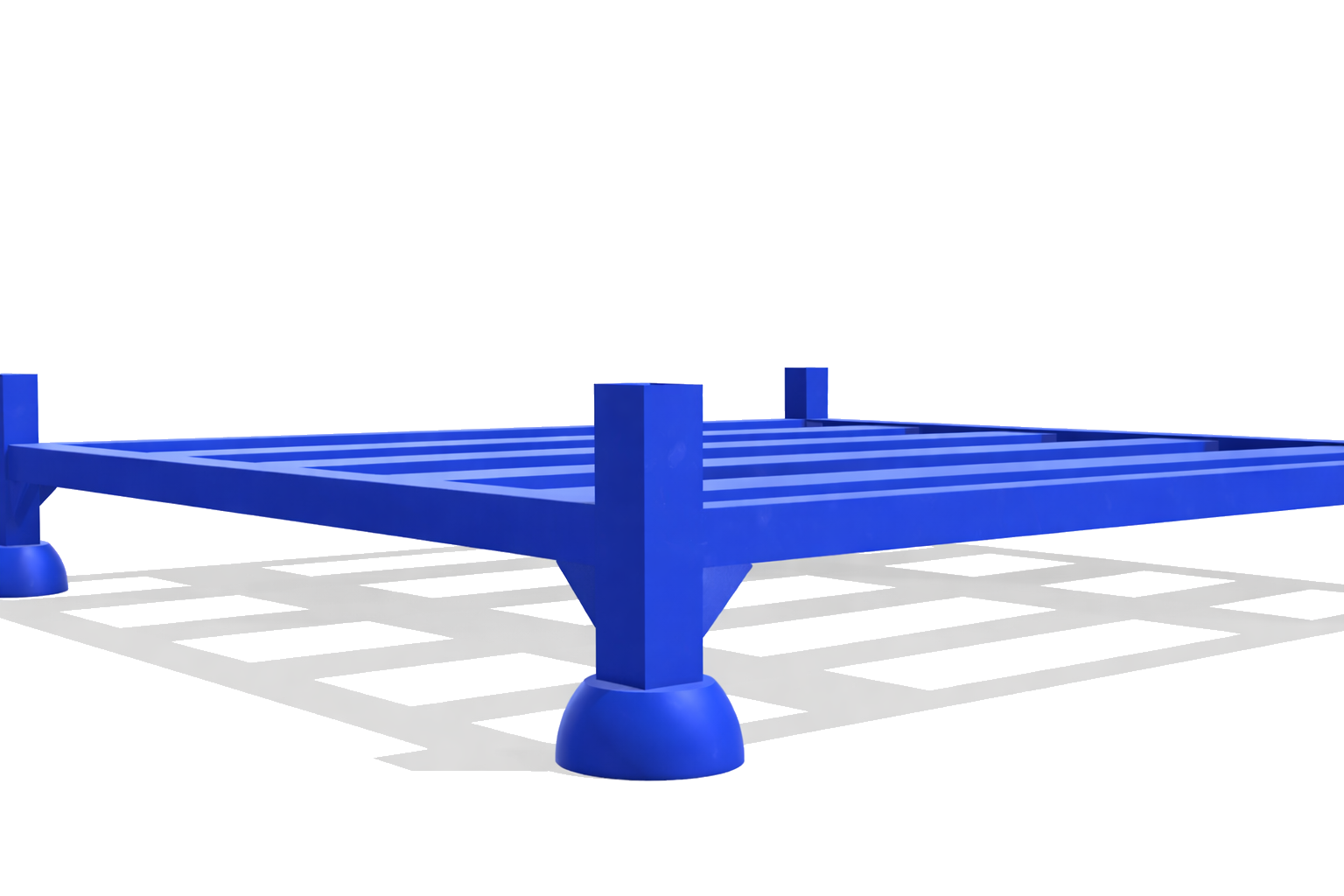

Base
The main frame is specified around product weight, pallet dimensions, and forklift handling.
Cold storage steel pallets
Stackable steel pallets for cold rooms and freezer warehouses
Mecca manufactures stackable steel pallets for cold rooms, freezer warehouses, IQF lines, frozen food factories, and fruit and vegetable cold storage. Sizes are built around the storage room, forklift movement, and the product being handled.
Up to 1 ton / 1000 kg
Internal size example: 100 × 120 cm
Up to 6 storage levels
Electrostatic or galvanized
Pallet structure
Built as a stackable handling system, not a flat pallet

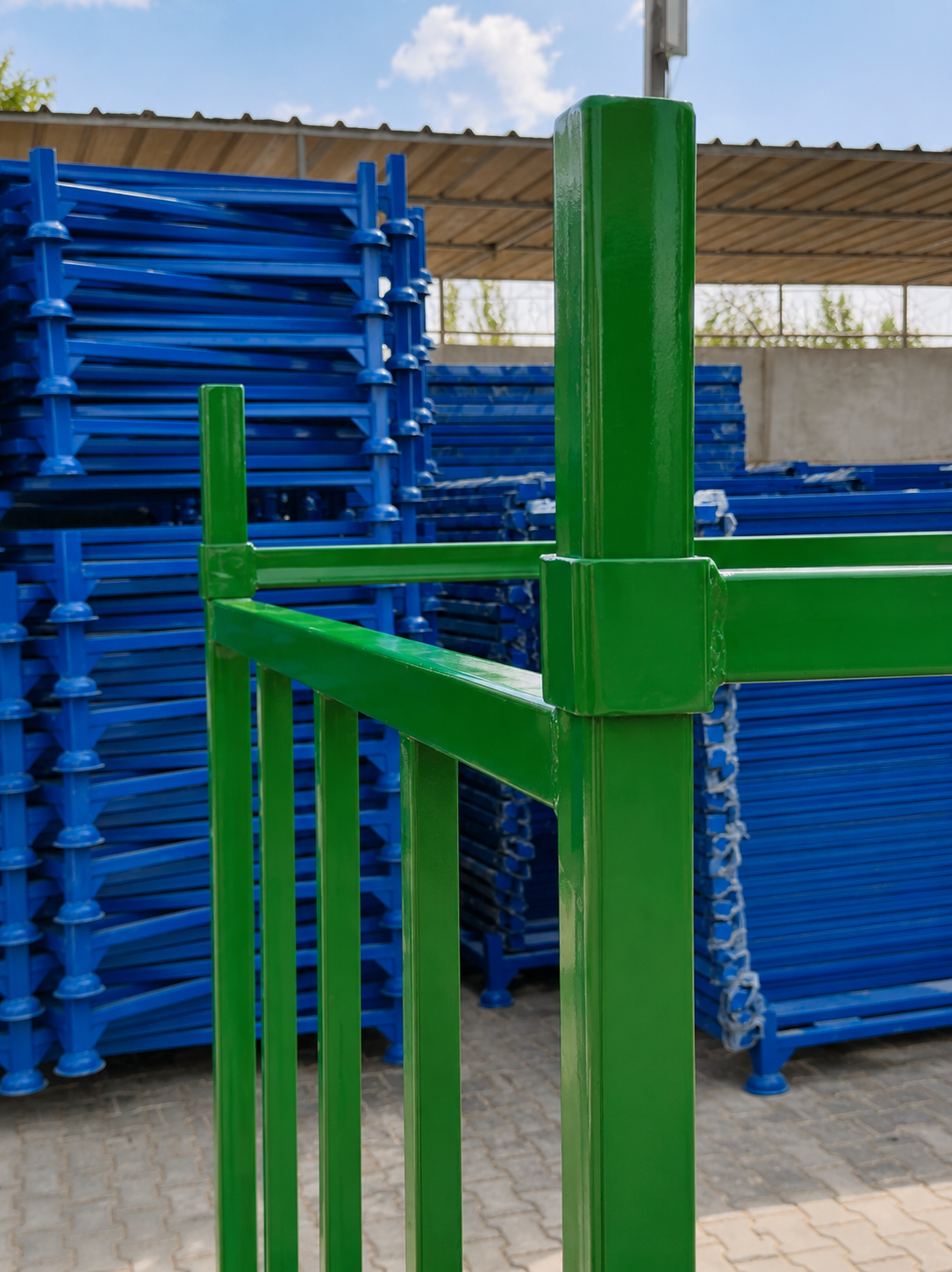

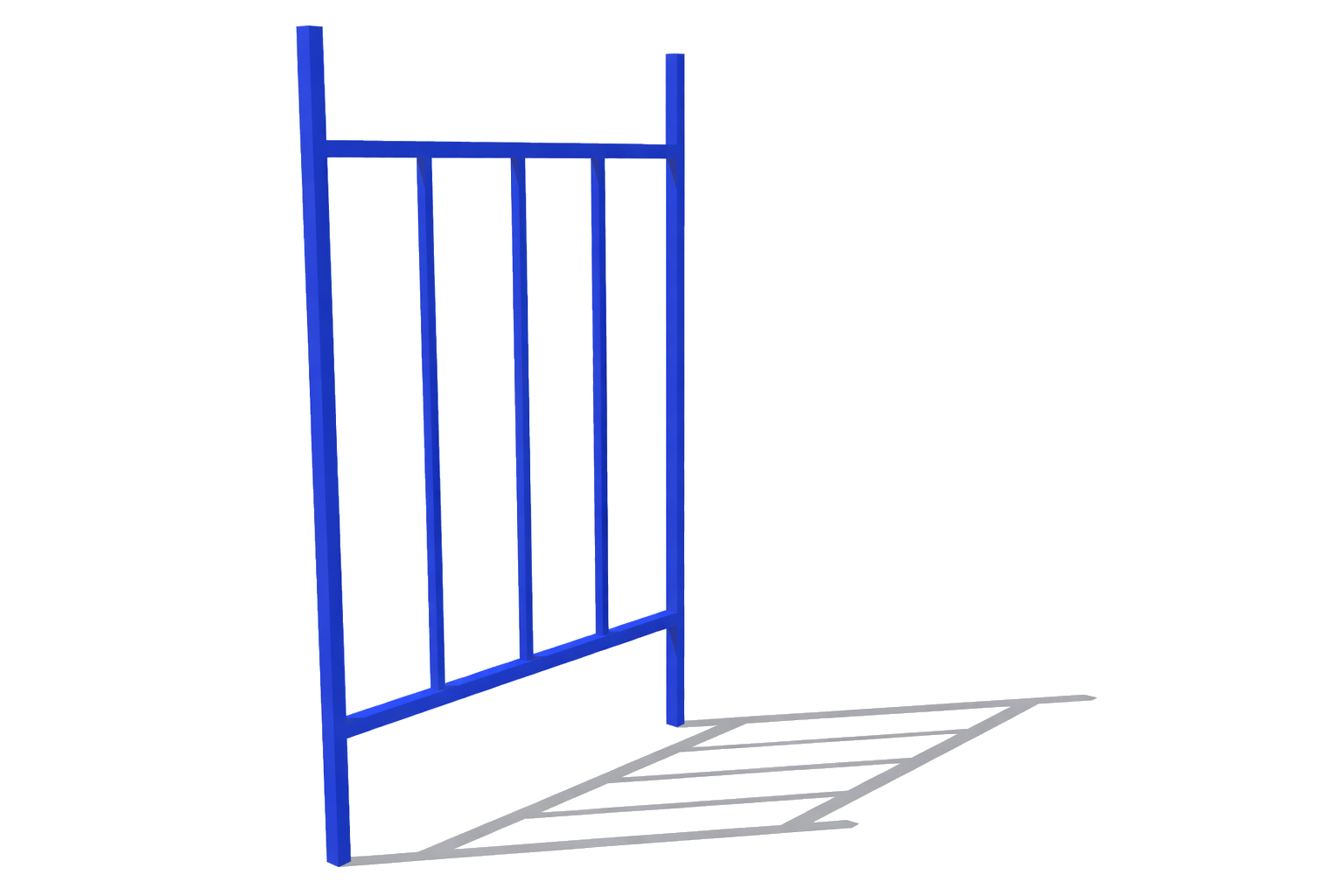

Side posts
Side posts carry vertical load and help contain the product during movement and stacking.

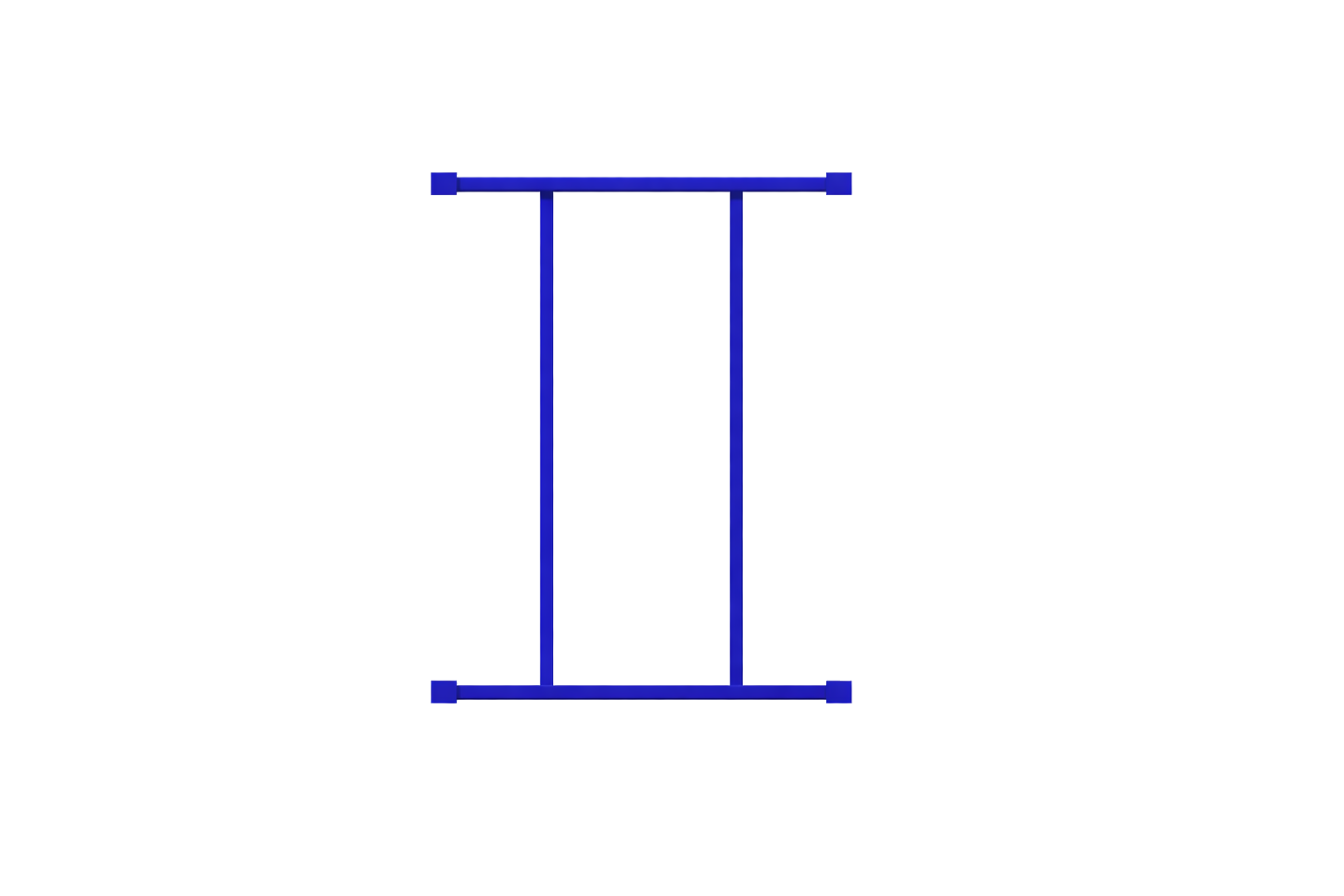

Back support
The back support adds rigidity and helps stabilize the pallet during storage and handling.

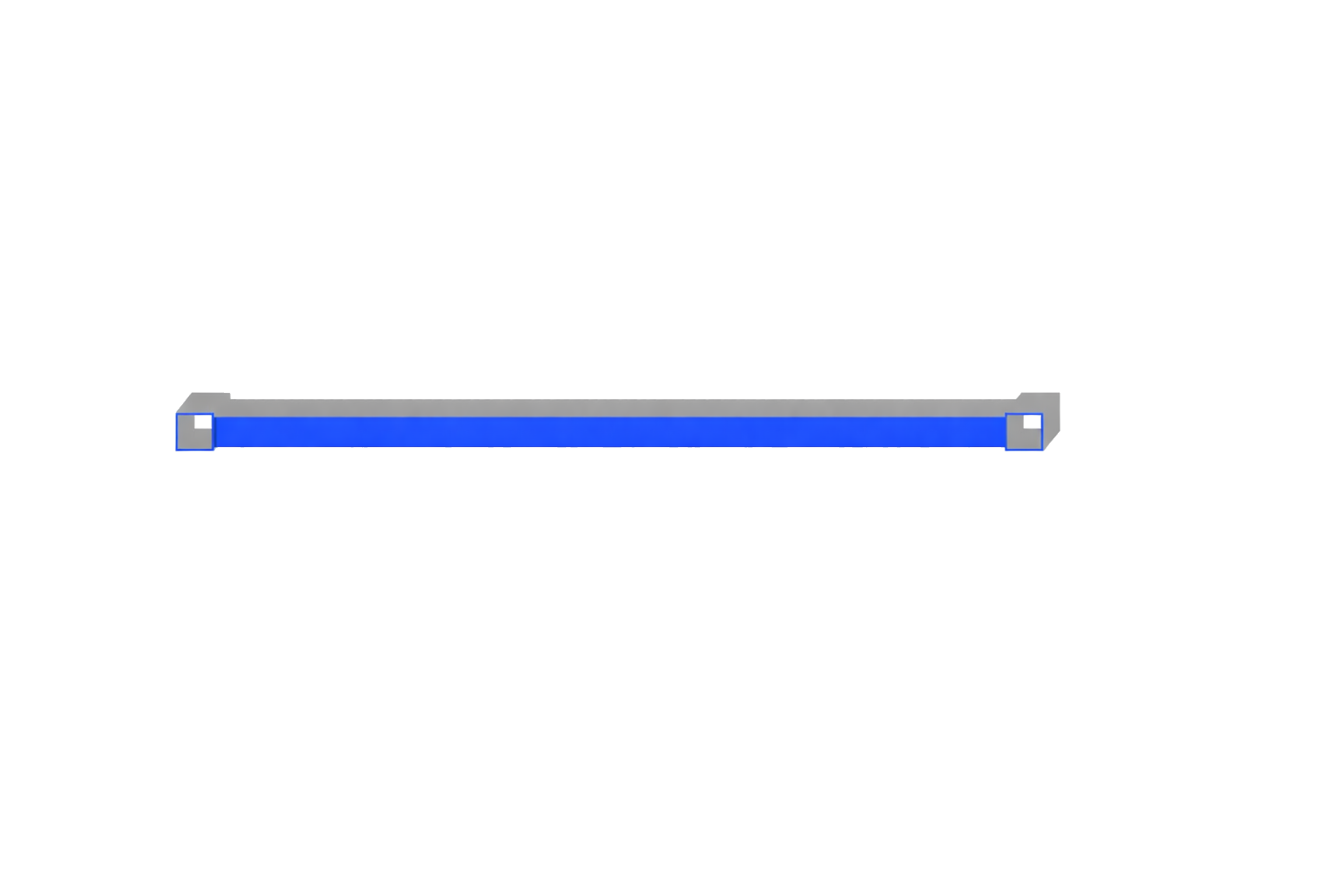

Lock
A securing component that supports assembly and repeatable stacking in operation.

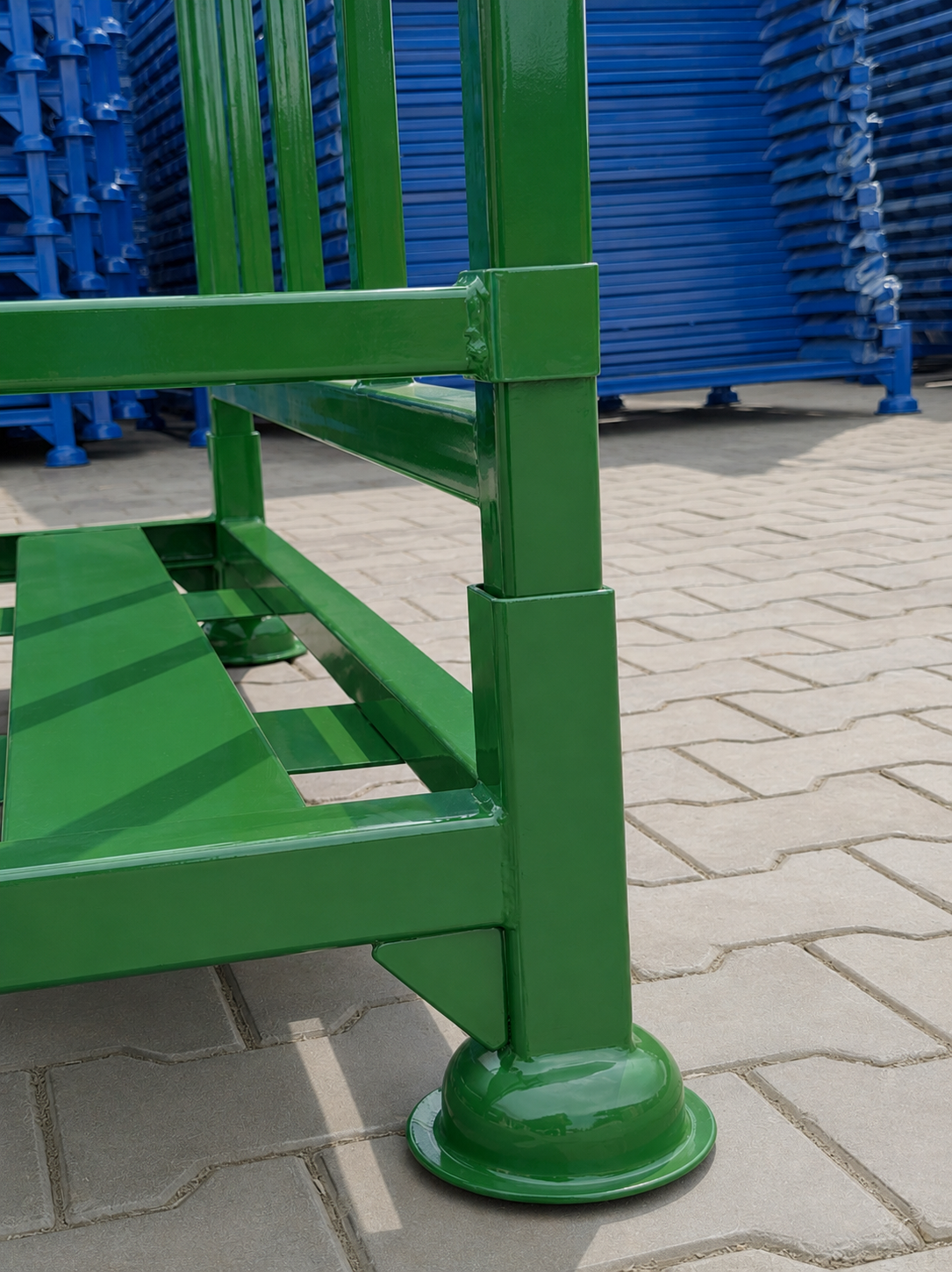

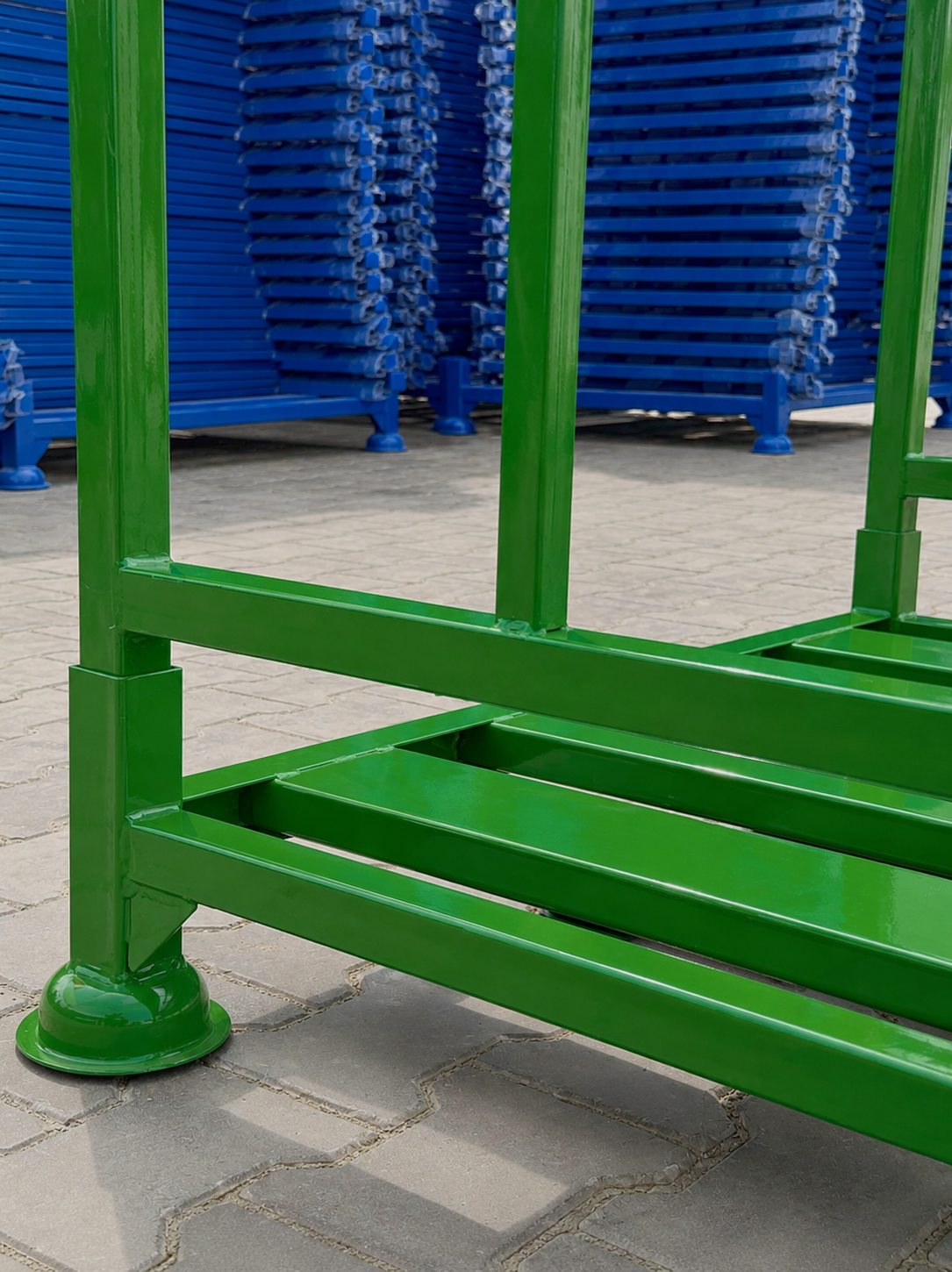

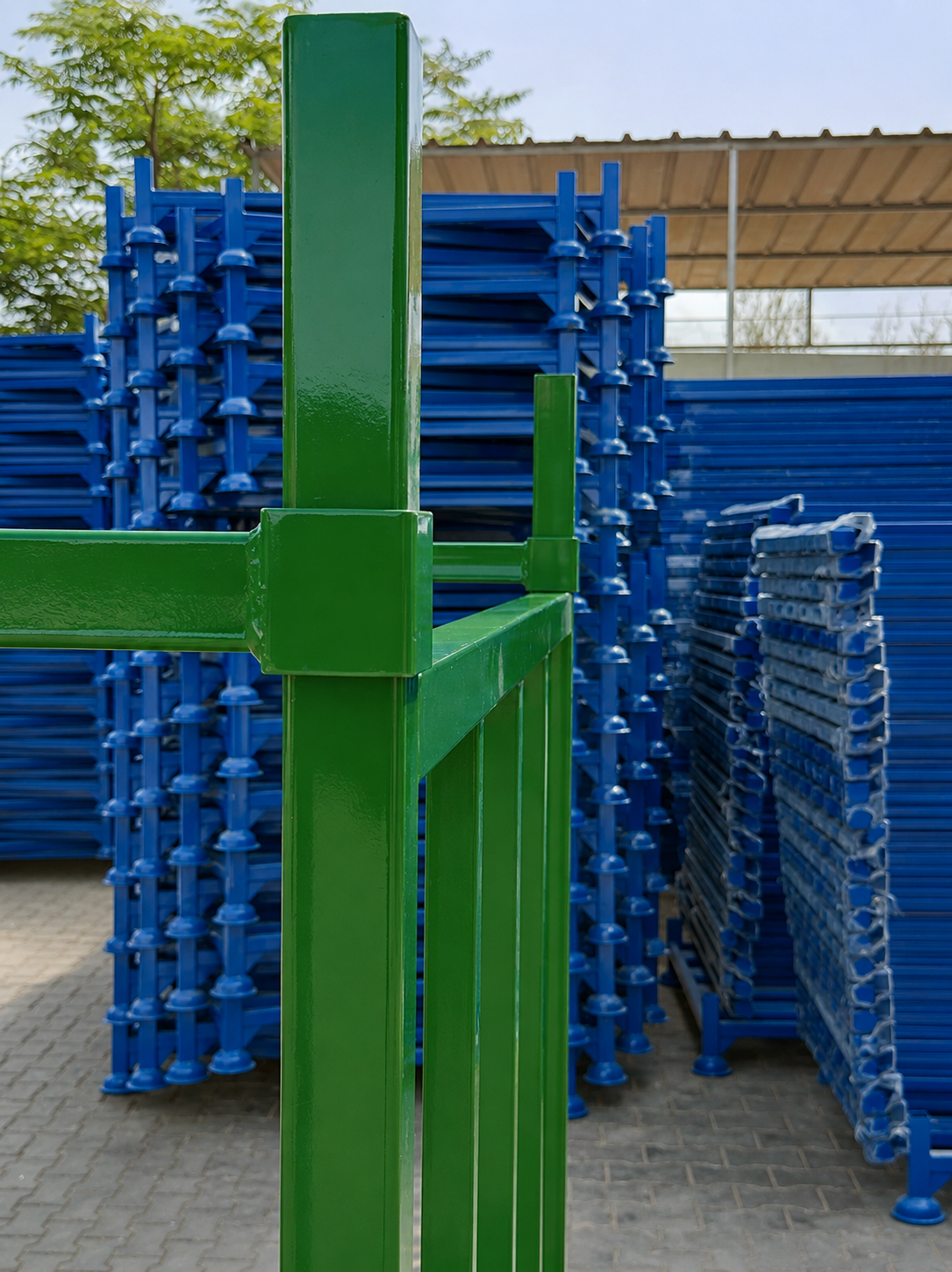

Product view
Real product details before procurement review
We review cold-room dimensions, product format, and forklift movement before confirming the design.
The final specification depends on product weight, load distribution, handling method, and stacking plan.
Choose electrostatic powder coating or galvanized finish based on moisture, cleaning, and budget.
Send internal width, internal length, height, quantity, finish, delivery city, and use case.
Specification summary
Typical steel pallet planning data
Internal width, length, and height can be adjusted to the product and storage room.
Finish is selected according to moisture, cleaning practice, and site preference.
The design considers forklift entry, aisle width, and loading movement.
Operational load per pallet, subject to final design and product distribution.
Suitable for cold storage, freezer warehouses, IQF, frozen food, and fruit/vegetable cold rooms.
Stacking levels depend on height, clearance, floor condition, and operating method.
| Internal size example | 100 × 120 cm |
|---|---|
| External size example | 110 × 130 cm |
| Height | Custom height |
| Load capacity | Up to 1 ton (1000 kg) per pallet |
| Operating environment | Cold rooms, freezer warehouses, IQF lines, frozen food factories, and fruit/vegetable cold storage |
| Vertical storage | Up to 6 planning levels |
| Finish | Electrostatic powder coating or galvanized finish |
| Moisture protection | Selected according to finish and operating conditions |
| Handling | Forklift-compatible design |
Finish choice
Electrostatic coating or galvanizing based on the site environment.
Finish selection depends on moisture, cleaning frequency, expected use, appearance requirements, and budget.
Clean color and controlled appearance
A practical option when the cold room needs color identification, a clean surface, and balanced cost.
Higher moisture resistance
Often requested when the operating environment is harsher, wetter, or cleaned frequently.
Materials and fabrication
Steel sections selected for repeated industrial handling
Material section and thickness are reviewed around product weight, stacking height, and forklift movement inside the cold room.
Sections are selected for the base and vertical posts according to the required operating load.
Steel thickness is chosen to support repeated use without overspecifying where it is not needed.
The frame is assembled with clear weld points that support stability during handling and stacking.
After fabrication, the finish is selected as electrostatic powder coating or galvanizing based on the site.
